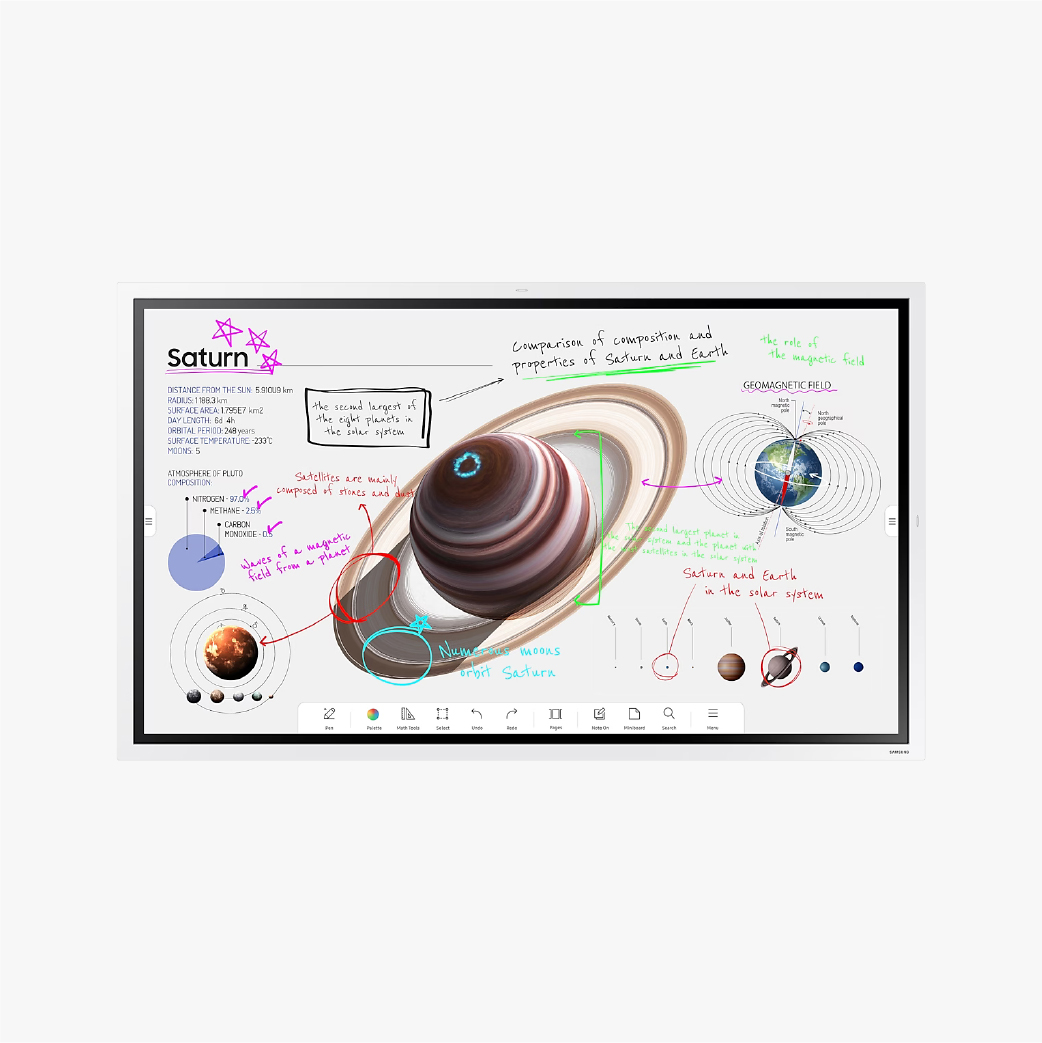

Samsung Flip Pro Interactive Display WMB Series

Categories: All, Interactive Flat Panel Brand: Samsung

Diagonal Size

55″

65″

85″

Description

Spesifikasi

WM55B

WM65B

WM75B

WM85B

WM55B

WM65B

WM75B

WM85B

Display	WM55B
Diagonal Size	55″
Panel Type	VA
Resolution	3,840 x 2,160
Pixel Pitch (HxV)	0.315 x 315
Brightness (Typ)	350cd/m2 (w/o glass), 220cd/m2 (w/glass)
Contrast Ratio	4000:1(without glass)
Viewing Angle (Horizontal/Vertical)	178/178
Response Time	8ms
Colour Gamut	72%
Glass Haze	2%(without glass)
H-Scanning Frequency	30~81 khz
Maximum Pixel Frequency	594Mhz
V-Scanning Frequency	48~75 Khz
Contrast Ratio (Dynamic)	N/A
Operation Time	16/7

Connectivity
HDMI In	2
DP In	1
Version of HDMI	2
Version of DP	1,2
Version of HDCP	2,2
USB	1(Rear), 3 (with optional front tray, Internal 1, External 1, USB-C 1)
Audio Out	Stereo Mini Jack
RS232 In	Yes
RJ45 In	Yes
WiFi	Yes
Bluetooth	Yes

Power
Power Supply	AC100-240V 50/60Hz
Power Consumption (On Mode)	154W
Power Consumption (Sleep Mode)	0.5W

Dimension
Set Dimension (WxHxD)	1297.4 x 768.2 x 59.9 mm
Package Dimension (WxHxD)	1464 x 915 x 190 mm

Weight
Set Weight with Stand	28.6 kg
Package Weight	35.9 kg

Operation Conditions
Temperature	0℃~40℃
Humidity	10 ~ 80%, non-condensing

Mechanical Specification
VESA Mount	400 x 400 mm
Frame Material	Plastic
Bezel Width	26.2

Optional Feature
Touch	Yes
Mount	Yes(Model Name : WMN-4277SF)

SoC
OS Version	Tizen 6.5
Flash Memory Size	32 GB

Touch
Touch Technology	IR

Certification and Compliance
EMC	Class A FCC (USA) Part 15, Subpart B KCC/EK (Korea) Tuner : KN32 / KN35 　 Tunerless : KN32 / KN35 CE (Europe) EN55032 : 2012 or 2015 　 EN55024:2010 or EN 55035:2017 VCCI (Japan) VCCI CISPR32:2016 　 CCC(China) GB/T9254-2008 　 GB17625.1-2012 BSMI (Taiwan) CNS13438 ( ITE EMI ) CNS14336-1 ( ITE Safety ) CNS15663 (RoHS) 　 C-Tick (Australia) AS/NZS CISPR32:2015 　 GOST(Russia/CIS) ROCT CISPR 24-2013 　 ROCT CISPR 22:2005
Safety	CB (Europe) : IEC60950-1/EN60950-1CCC (China) : GB4943.1-2011PSB (Singapore ) : PSB+IEC60950-1NOM (Mexico ) : NOM-001-SCFI-1993IRAM (Argentina ) : IRAM+IEC60950-1SASO (Saudi Arabia ) : SASO+IEC60950-1BIS(India) : IEC60950-1 / IS13252NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998KC(Korea) : K 60950-1EAC(Russia) : EAC+IEC60950-1INMETRO(Brazil) : INMETRO+IEC60950-1BSMI(Taiwan) : BSMI+IEC60950-1RCM(Australia) : IEC60950-1/AS/NZS 60950-1UL(USA) : cUL60950

Display	WM65B
Diagonal Size	65″
Panel Type	VA
Resolution	3,840 x 2,160
Pixel Pitch (HxV)	0.372 x 0.372(mm)
Brightness (Typ)	350cd/m2 (w/o glass), 220cd/m2 (w/glass)
Contrast Ratio	4000:1(without glass)
Viewing Angle (Horizontal/Vertical)	178/179
Response Time	8ms
Colour Gamut	72%
Glass Haze	2%(without glass)
H-Scanning Frequency	30~81 khz
Maximum Pixel Frequency	594Mhz
V-Scanning Frequency	48~75 Khz
Contrast Ratio (Dynamic)	N/A
Operation Time	16/7

Connectivity
HDMI In	2
DP In	1
Version of HDMI	2
Version of DP	1,2
Version of HDCP	2,2
USB	1(Rear), 3 (with optional front tray, Internal 1, External 1, USB-C 1)
Audio Out	Stereo Mini Jack
RS232 In	Yes
RJ45 In	Yes
WiFi	Yes
Bluetooth	Yes

Power
Power Supply	AC100-240V 50/60Hz
Power Consumption (On Mode)	192.5W
Power Consumption (Sleep Mode)	0.5W

Dimension
Set Dimension (WxHxD)	1522.4 x 897.6 x 62.9 mm
Package Dimension (WxHxD)	1691 x 1055 x 198 mm

Weight
Set Weight with Stand	39.7 kg
Package Weight	48.2 kg

Operation Conditions
Temperature	0℃~40℃
Humidity	10 ~ 80%, non-condensing

Mechanical Specification
VESA Mount	400 x 400 mm
Frame Material	Plastic
Bezel Width	27.2

Optional Feature
Touch	Yes
Mount	Yes(Model Name : WMN-WM65R)

SoC
OS Version	Tizen 6.5
Flash Memory Size	32 GB

Touch
Touch Technology	IR

Certification and Compliance
EMC	Class A FCC (USA) Part 15, Subpart B KCC/EK (Korea) Tuner : KN32 / KN35 　 Tunerless : KN32 / KN35 CE (Europe) EN55032 : 2012 or 2015 　 EN55024:2010 or EN 55035:2017 VCCI (Japan) VCCI CISPR32:2016 　 CCC(China) GB/T9254-2008 　 GB17625.1-2012 BSMI (Taiwan) CNS13438 ( ITE EMI ) CNS14336-1 ( ITE Safety ) CNS15663 (RoHS) 　 C-Tick (Australia) AS/NZS CISPR32:2015 　 GOST(Russia/CIS) ROCT CISPR 24-2013 　 ROCT CISPR 22:2005
Safety	CB (Europe) : IEC60950-1/EN60950-1CCC (China) : GB4943.1-2011PSB (Singapore ) : PSB+IEC60950-1NOM (Mexico ) : NOM-001-SCFI-1993IRAM (Argentina ) : IRAM+IEC60950-1SASO (Saudi Arabia ) : SASO+IEC60950-1BIS(India) : IEC60950-1 / IS13252NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998KC(Korea) : K 60950-1EAC(Russia) : EAC+IEC60950-1INMETRO(Brazil) : INMETRO+IEC60950-1BSMI(Taiwan) : BSMI+IEC60950-1RCM(Australia) : IEC60950-1/AS/NZS 60950-1UL(USA) : cUL60950

Display	WM75B
Diagonal Size	75″
Panel Type	VA
Resolution	3,840 x 2,160
Pixel Pitch (HxV)	0.2451×0.2451(mm)
Brightness (Typ)	350 (w/o glass), 220 (w/glass)
Contrast Ratio	4000:1(without glass)
Viewing Angle (Horizontal/Vertical)	178/178
Response Time	8ms
Colour Gamut	72%
Glass Haze	2%(without glass)
H-Scanning Frequency	30~81 khz
Maximum Pixel Frequency	594Mhz
V-Scanning Frequency	48~75 Khz
Contrast Ratio (Dynamic)	N/A
Operation Time	17/7

Connectivity
HDMI In	2
DP In	1
Version of HDMI	2.0
Version of DP	1.2
Version of HDCP	2,2
USB	4 (A type : Front 2, Rear 1, C Type : Front 1)
Audio Out	Stereo Mini Jack
RS232 In	Yes
RJ45 In	Yes
WiFi	Yes
Bluetooth	Yes

Power
Power Supply	AC100-240V 50/60Hz
Power Consumption (On Mode)	473W(100-240V), 451W(220-240V), OPS(16V/4.5A)
Power Consumption (Sleep Mode)	0.5W

Dimension
Set Dimension (WxHxD)	1724 x 1026.3 x 89 mm
Package Dimension (WxHxD)	1905 x 1189 x 287 mm

Weight
Set Weight with Stand	59.3 kg
Package Weight	72.2 kg

Operation Conditions
Temperature	0℃~40℃
Humidity	10 ~ 80%, non-condensing

Mechanical Specification
VESA Mount	400 x 400 mm
Frame Material	Metal(Aluminum)
Bezel Width	20.4mm(T/LR), 44.7mm(B)

Optional Feature
Touch	Yes
Mount	Yes(Model Name : WMN6575SF)

SoC
OS Version	Tizen 6.5
Flash Memory Size	32 GB

Touch
Touch Technology	IR

Certification and Compliance
EMC	Class A FCC (USA) Part 15, Subpart B 　 KCC/EK (Korea) Tuner : KN32 / KN35 　 Tunerless : KN32 / KN35 CE (Europe) EN55032 : 2012 or 2015 　 EN55024:2010 or EN 55035:2017 VCCI (Japan) VCCI CISPR32:2016 　 CCC(China) GB/T9254-2008 　 GB17625.1-2012 BSMI (Taiwan) CNS13438 ( ITE EMI ) CNS14336-1 ( ITE Safety ) CNS15663 (RoHS) 　 C-Tick (Australia) AS/NZS CISPR32:2015 　 GOST(Russia/CIS) ROCT CISPR 24-2013 　 ROCT CISPR 22:2005
Safety	CB (Europe) : IEC60950-1/EN60950-1CCC (China) : GB4943.1-2011PSB (Singapore ) : PSB+IEC60950-1NOM (Mexico ) : NOM-001-SCFI-1993IRAM (Argentina ) : IRAM+IEC60950-1SASO (Saudi Arabia ) : SASO+IEC60950-1BIS(India) : IEC60950-1 / IS13252NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998KC(Korea) : K 60950-1EAC(Russia) : EAC+IEC60950-1INMETRO(Brazil) : INMETRO+IEC60950-1BSMI(Taiwan) : BSMI+IEC60950-1RCM(Australia) : IEC60950-1/AS/NZS 60950-1UL(USA) : cUL60950

Display	WM85B
Diagonal Size	85″
Panel Type	VA
Resolution	3,840 x 2,160
Pixel Pitch (HxV)	0.4875(H) mm x 0.4875(W) mm
Brightness (Typ)	350cd/m2 (w/o glass), 220cd/m2 (w/glass)
Contrast Ratio	4000:1(without glass)
Viewing Angle (Horizontal/Vertical)	178/180
Response Time	8ms
Colour Gamut	72%
Glass Haze	2%(without glass)
H-Scanning Frequency	30~81 khz
Maximum Pixel Frequency	594Mhz
V-Scanning Frequency	48~75 Khz
Contrast Ratio (Dynamic)	N/A
Operation Time	16/7

Connectivity
HDMI In	2
DP In	1
Version of HDMI	2
Version of DP	1,2
Version of HDCP	2,2
USB	4 (A type : Front 2, Rear 1, C Type : Front 1)
Audio Out	Stereo Mini Jack
RS232 In	Yes
RJ45 In	Yes
WiFi	Yes
Bluetooth	Yes

Power
Power Supply	AC100-240V 50/60Hz
Power Consumption (On Mode)	528W(100-240V), 506W(220-240V), OPS(16V/4.5A)
Power Consumption (Sleep Mode)	0.5W

Dimension
Set Dimension (WxHxD)	1945.8 x 1151.1 x 89 mm
Package Dimension (WxHxD)	2136 x 1318 x 260 mm

Weight
Set Weight with Stand	75.2 kg
Package Weight	91.6 kg

Operation Conditions
Temperature	0℃~40℃
Humidity	10 ~ 80%, non-condensing

Mechanical Specification
VESA Mount	600 x 400 mm
Frame Material	Metal(Aluminum)
Bezel Width	20.4mm(T/LR), 44.7mm(B)

Optional Feature
Touch	Yes
Mount	Yes(Model Name : WMN8200SF)

SoC
OS Version	Tizen 6.5
Flash Memory Size	32 GB

Touch
Touch Technology	IR

Certification and Compliance
EMC	Class A FCC (USA) Part 15, Subpart B 　 KCC/EK (Korea) Tuner : KN32 / KN35 　 Tunerless : KN32 / KN35 CE (Europe) EN55032 : 2012 or 2015 　 EN55024:2010 or EN 55035:2017 VCCI (Japan) VCCI CISPR32:2016 　 CCC(China) GB/T9254-2008 　 GB17625.1-2012 BSMI (Taiwan) CNS13438 ( ITE EMI ) CNS14336-1 ( ITE Safety ) CNS15663 (RoHS) 　 C-Tick (Australia) AS/NZS CISPR32:2015 　 GOST(Russia/CIS) ROCT CISPR 24-2013 　 ROCT CISPR 22:2005
Safety	CB (Europe) : IEC60950-1/EN60950-1CCC (China) : GB4943.1-2011PSB (Singapore ) : PSB+IEC60950-1NOM (Mexico ) : NOM-001-SCFI-1993IRAM (Argentina ) : IRAM+IEC60950-1SASO (Saudi Arabia ) : SASO+IEC60950-1BIS(India) : IEC60950-1 / IS13252NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998KC(Korea) : K 60950-1EAC(Russia) : EAC+IEC60950-1INMETRO(Brazil) : INMETRO+IEC60950-1BSMI(Taiwan) : BSMI+IEC60950-1RCM(Australia) : IEC60950-1/AS/NZS 60950-1UL(USA) : cUL60950
