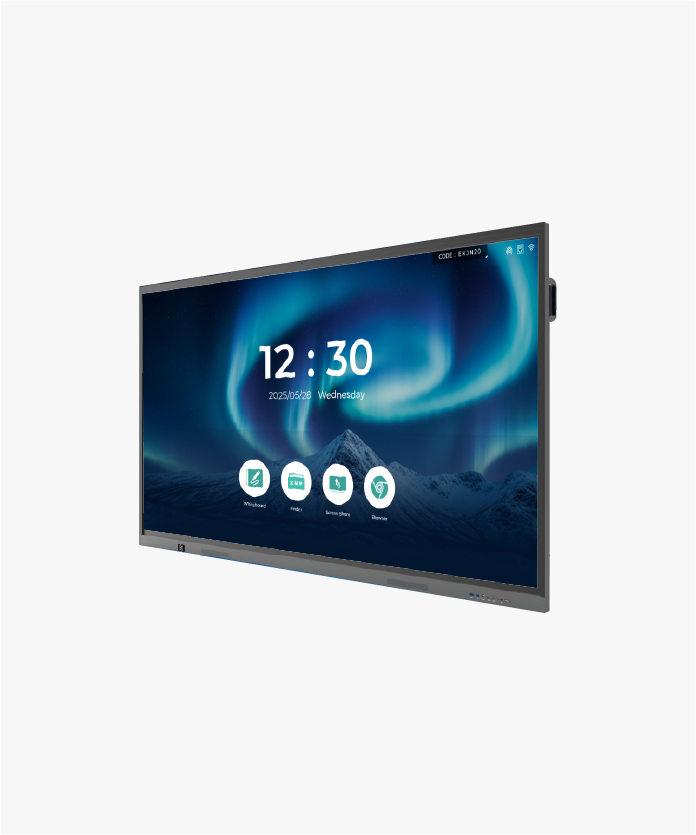

iBright Interactive Flat Panel UST Series

Categories: All, Interactive Flat Panel Brand: iBright

Model Type	MT650C-UST	MT750C-UST	MT860C-UST	MT980C-UST
Ukuran	65 Inch	75 Inch	86 Inch	98 Inch

Description

Specification

MT650C-UST

MT750C-UST

MT860C-UST

MT980C-UST

MT650C-UST

MT750C-UST

MT860C-UST

MT980C-UST

Product Name	MT650C-UST
LCD Size	65″
Response Time	8 ms
Resolution	16:9 / 3840(H)×2160(V) 60Hz
Max Visual Area (mm X mm)	1429×804
Display Colors	1.07B (10bit) / Color Gamut (Typ): 80%
Contrast Ratio (Typ)	1200:1 – 6000:1
Viewing Angle	178°(H/V)
Brightness (Typ)	450cd/m2
Back Light Life	≥50000hrs
Power	2×16W (treble) + 2×16W (subwoofer)
Camera	1Quantity：Pixel：48MP，Front up Support Ai Mode Gesture Switching Image, Voice Tracking, And Voice Enhancement
MIC	8 Quantity Pickup Distance：0~8m
Pickup Angle	0°~180°
Function	Support Echo Cancellation, Intelligent Noise Reduction, Reverberation Suppression
Touch Type	Infrared Touch
Supported System	Windows10/Windows8/Windows7/Windows XP/Android/Linux/Mac OS X/Chrome
Writing Points	Max 40Points Touch
Minimum Identifier	1.5MM (Over 90% Of The Area) Response Time: ≤2.0MS
Input Mode	Finger, Passive Ir Pen
Touch Accuracy	±0.5MM (Over 90% Of The Area) Response Time: ≤2.0MS
Writing Display	Single Stylus Pen With Two Color
Output Coordinates	32767 (W) X 32767(D)
System Version	Android 13.0 / 2.4GHz
Configuration	Chip RK3588, Quad-Core A76 + Quad-Core A55/ARM Mali-G610 MC4
RAM/ROM	8GB + 64GB
OSD	Supports 21 languages
Bluetooth & Wifi	5.2 (Operation Distance: 0~10m)；Built-in Wi-Fi
Operation Frequency	2.4GHz/5GHz (Operation Distance: 0~10m)
Front Interface	USB 3.0 x 2 , HDMI x 1 , TOUCH x 1 , TYPE-C x 1 (support 65W PD)
Back Interface	USB 3.0 x 2 , HDMI IN x 3 , HDMI OUT x 1, DP IN x 1 , TOUCH OUT 3.0 x 3 , TYPE-C IN x 1, TYPE-C, OUT x 1 , RS232 x 1 , RJ45 IN x 1 , RJ45 OUT x 1 , AUDIO IN x 1 , VGA IN x 1 , USB IN x 1, LINE OUT x 1 , COAX x 1
Voltage	Rated 100-240V~, Max 90-264V~50/60Hz，Standby Power Consumption: ≤0.5W
Max Power Consumption	350W
Packing Dimension (mm)	1630×220×1050
Working Temperature/Humidity	0℃~40℃/10%~90%RH (Storage Temperature: -20℃~60℃)
OPS	Support (Optional)
NFC	Support

Product Name	MT750C-UST
LCD Size	75″
Response Time	8 ms
Resolution	16:9 / 3840(H)×2160(V) 60Hz
Max Visual Area (mm X mm)	1650×928
Display Colors	1.07B (10bit) / Color Gamut (Typ): 80%
Contrast Ratio (Typ)	1200:1 – 6000:1
Viewing Angle	178°(H/V)
Brightness (Typ)	450cd/m2
Back Light Life	≥50000hrs
Power	2×16W (treble) + 2×16W (subwoofer)
Camera	1Quantity：Pixel：48MP，Front up Support Ai Mode Gesture Switching Image, Voice Tracking, And Voice Enhancement
MIC	8 Quantity Pickup Distance：0~8m
Pickup Angle	0°~180°
Function	Support Echo Cancellation, Intelligent Noise Reduction, Reverberation Suppression
Touch Type	Infrared Touch
Supported System	Windows10/Windows8/Windows7/Windows XP/Android/Linux/Mac OS X/Chrome
Writing Points	Max 40Points Touch
Minimum Identifier	1.5MM (Over 90% Of The Area) Response Time: ≤2.0MS
Input Mode	Finger, Passive Ir Pen
Touch Accuracy	±0.5MM (Over 90% Of The Area) Response Time: ≤2.0MS
Writing Display	Single Stylus Pen With Two Color
Output Coordinates	32767 (W) X 32767(D)
System Version	Android 13.0 / 2.4GHz
Configuration	Chip RK3588, Quad-Core A76 + Quad-Core A55/ARM Mali-G610 MC4
RAM/ROM	8GB + 64GB
OSD	Supports 21 languages
Bluetooth & Wifi	5.2 (Operation Distance: 0~10m)；Built-in Wi-Fi
Operation Frequency	2.4GHz/5GHz (Operation Distance: 0~10m)
Front Interface	USB 3.0 x 2 , HDMI x 1 , TOUCH x 1 , TYPE-C x 1 (support 65W PD)
Back Interface	USB 3.0 x 2 , HDMI IN x 3 , HDMI OUT x 1, DP IN x 1 , TOUCH OUT 3.0 x 3 , TYPE-C IN x 1, TYPE-C, OUT x 1 , RS232 x 1 , RJ45 IN x 1 , RJ45 OUT x 1 , AUDIO IN x 1 , VGA IN x 1 , USB IN x 1, LINE OUT x 1 , COAX x 1
Voltage	Rated 100-240V~, Max 90-264V~50/60Hz，Standby Power Consumption: ≤0.5W
Max Power Consumption	400W
Packing Dimension (mm)	1860×220×1160
Working Temperature/Humidity	0℃~40℃/10%~90%RH (Storage Temperature: -20℃~60℃)
OPS	Support (Optional)
NFC	Support

Product Name	MT860C-UST
LCD Size	86″
Response Time	8 ms
Resolution	16:9 / 3840(H)×2160(V) 60Hz
Max Visual Area (mm X mm)	1895×1065
Display Colors	1.07B (10bit) / Color Gamut (Typ): 80%
Contrast Ratio (Typ)	1200:1 – 6000:1
Viewing Angle	178°(H/V)
Brightness (Typ)	450cd/m2
Back Light Life	≥50000hrs
Power	2×16W (treble) + 2×16W (subwoofer)
Camera	1Quantity：Pixel：48MP，Front up Support Ai Mode Gesture Switching Image, Voice Tracking, And Voice Enhancement
MIC	8 Quantity Pickup Distance：0~8m
Pickup Angle	0°~180°
Function	Support Echo Cancellation, Intelligent Noise Reduction, Reverberation Suppression
Touch Type	Infrared Touch
Supported System	Windows10/Windows8/Windows7/Windows XP/Android/Linux/Mac OS X/Chrome
Writing Points	Max 40Points Touch
Minimum Identifier	1.5MM (Over 90% Of The Area) Response Time: ≤2.0MS
Input Mode	Finger, Passive Ir Pen
Touch Accuracy	±0.5MM (Over 90% Of The Area) Response Time: ≤2.0MS
Writing Display	Single Stylus Pen With Two Color
Output Coordinates	32767 (W) X 32767(D)
System Version	Android 13.0 / 2.4GHz
Configuration	Chip RK3588, Quad-Core A76 + Quad-Core A55/ARM Mali-G610 MC4
RAM/ROM	8GB + 64GB
OSD	Supports 21 languages
Bluetooth & Wifi	5.2 (Operation Distance: 0~10m)；Built-in Wi-Fi
Operation Frequency	2.4GHz/5GHz (Operation Distance: 0~10m)
Front Interface	USB 3.0 x 2 , HDMI x 1 , TOUCH x 1 , TYPE-C x 1 (support 65W PD)
Back Interface	USB 3.0 x 2 , HDMI IN x 3 , HDMI OUT x 1, DP IN x 1 , TOUCH OUT 3.0 x 3 , TYPE-C IN x 1, TYPE-C, OUT x 1 , RS232 x 1 , RJ45 IN x 1 , RJ45 OUT x 1 , AUDIO IN x 1 , VGA IN x 1 , USB IN x 1, LINE OUT x 1 , COAX x 1
Voltage	Rated 100-240V~, Max 90-264V~50/60Hz，Standby Power Consumption: ≤0.5W
Max Power Consumption	450W
Packing Dimension (mm)	2120×220×1325
Working Temperature/Humidity	0℃~40℃/10%~90%RH (Storage Temperature: -20℃~60℃)
OPS	Support (Optional)
NFC	Support

Product Name	MT980C-UST
LCD Size	98″
Response Time	8 ms
Resolution	16:9 / 3840(H)×2160(V) 60Hz
Max Visual Area (mm X mm)	2158×1214
Display Colors	1.07B (10bit) / Color Gamut (Typ): 80%
Contrast Ratio (Typ)	1200:1 – 6000:1
Viewing Angle	178°(H/V)
Brightness (Typ)	450cd/m2
Back Light Life	≥50000hrs
Power	2×16W (treble) + 2×16W (subwoofer)
Camera	1Quantity：Pixel：48MP，Front up Support Ai Mode Gesture Switching Image, Voice Tracking, And Voice Enhancement
MIC	8 Quantity Pickup Distance：0~8m
Pickup Angle	0°~180°
Function	Support Echo Cancellation, Intelligent Noise Reduction, Reverberation Suppression
Touch Type	Infrared Touch
Supported System	Windows10/Windows8/Windows7/Windows XP/Android/Linux/Mac OS X/Chrome
Writing Points	Max 40Points Touch
Minimum Identifier	1.5MM (Over 90% Of The Area) Response Time: ≤2.0MS
Input Mode	Finger, Passive Ir Pen
Touch Accuracy	±0.5MM (Over 90% Of The Area) Response Time: ≤2.0MS
Writing Display	Single Stylus Pen With Two Color
Output Coordinates	32767 (W) X 32767(D)
System Version	Android 13.0 / 2.4GHz
Configuration	Chip RK3588, Quad-Core A76 + Quad-Core A55/ARM Mali-G610 MC4
RAM/ROM	8GB + 64GB
OSD	Supports 21 languages
Bluetooth & Wifi	5.2 (Operation Distance: 0~10m)；Built-in Wi-Fi
Operation Frequency	2.4GHz/5GHz (Operation Distance: 0~10m)
Front Interface	USB 3.0 x 2 , HDMI x 1 , TOUCH x 1 , TYPE-C x 1 (support 65W PD)
Back Interface	USB 3.0 x 2 , HDMI IN x 3 , HDMI OUT x 1, DP IN x 1 , TOUCH OUT 3.0 x 3 , TYPE-C IN x 1, TYPE-C, OUT x 1 , RS232 x 1 , RJ45 IN x 1 , RJ45 OUT x 1 , AUDIO IN x 1 , VGA IN x 1 , USB IN x 1, LINE OUT x 1 , COAX x 1
Voltage	Rated 100-240V~, Max 90-264V~50/60Hz，Standby Power Consumption: ≤0.5W
Max Power Consumption	550W
Packing Dimension (mm)	2525×325×1700
Working Temperature/Humidity	0℃~40℃/10%~90%RH (Storage Temperature: -20℃~60℃)
OPS	Support (Optional)
NFC	Support
