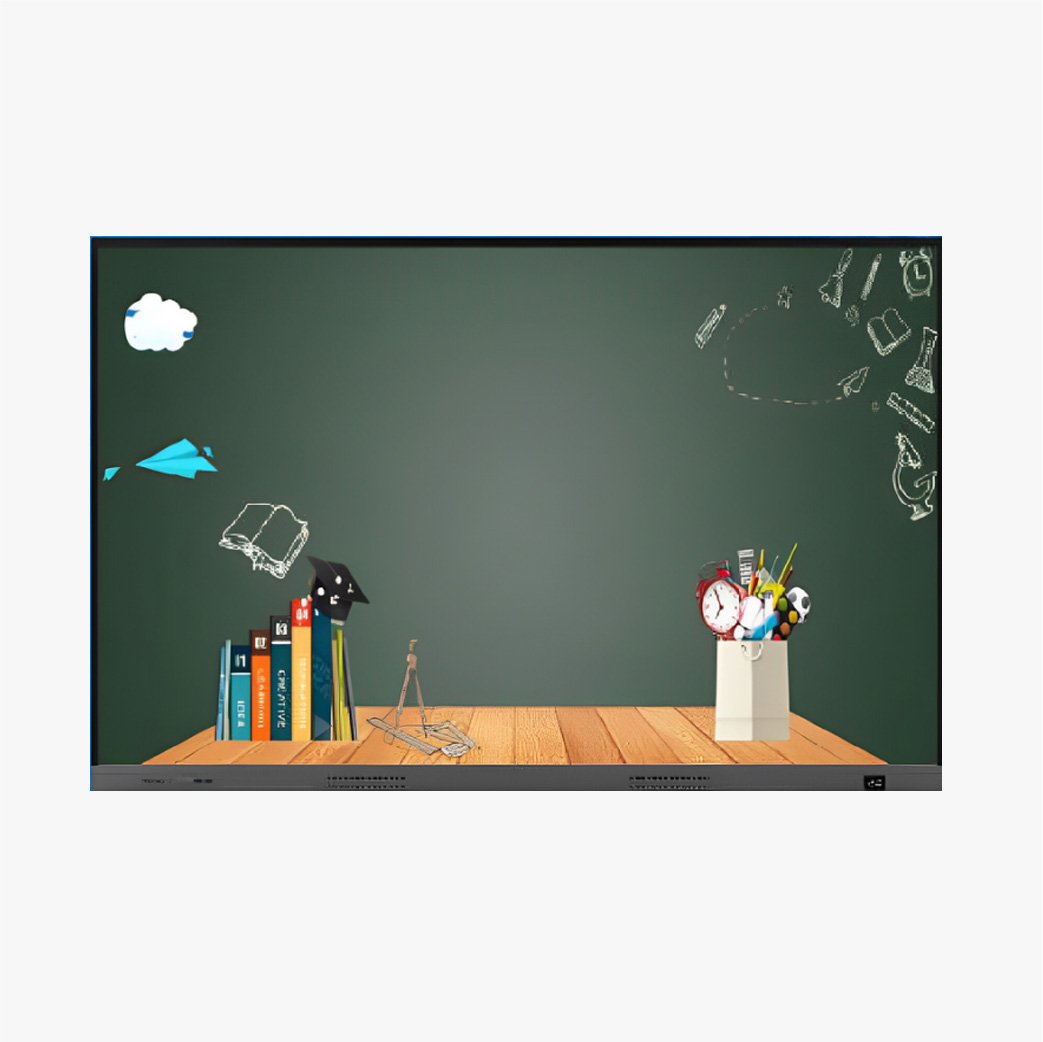

Belyst Interactive Flat Panel Camera

Categories: All, Interactive Flat Panel Brand: Belyst

Model Type	BL-6511C	BL-7511C	BL-8611C	BL-9811C
Ukuran	65 Inch	75 Inch	86 Inch	98 Inch

Spesifikasi

BL-6511C

BL-7511C

BL-8611C

BL-9811C

BL-6511C

BL-7511C

BL-8611C

BL-9811C

Model Type	BL-6511C
Integrated Processor	Android 11 2.2GHz 4 core A73×4 +4 core A53×4
Memory	4GB DDR4 /32G (8G/128G Optional)
View Area	T65Omini-C/S:1429(H)×804(V)mm
Resolution	3840×2160(pixels)
Brightness	350-440cd/m²
Contrast Ratio	1200:1(optional 4000:1/5000:1/6000:1)
Response Time	6ms
Refreshing Frequency	65-98Inch:60 Hz 110Inch:120Hz
Viewing Angle	178°(H) / 178°(V)
Life Time	50,000 hrs
Color Gamut	72%
Display Colors	1.07G(10bit)
Audio Output Power	2×16W
Interface	HDMI IN x2, HDMI OUT x1, USB2.0 x1, USB3.0 x2, TOUCH USB x2, TYPE-C 1, COAX x1, RS232 IN x1, AUDIO IN x1, AUDIO OUT x1, VGA IN x1, DP IN x1, LAN x2
Front Interface	USB 3.0 x2, Type-C x1, Touch-USB x1, HDMI IN x1, Button x1
WiFi	2.4GHz
WI-FI Standard	802.11a/b/g/n/ac
Bluetooth	5.2 Version
Sensing Type	Infrared Touch Frame
Surface Protection	3.2mm Toughened Glass
Infrared Touch	Maximum support 40 Points
Min. Object Size	2mm
Touch Accuracy	±1mm
Touch System	Windows 10/8/7, Windows XP, Linux, Mac OSX, Chrome, Android
OPS(Optional)	i5/8G/256G(Optional:500G) i7/8G/256G(Optional:500G)
NFC Function	Support
VESA Hole Site	800mmx600mm
Camera	48 million pixels
Mic Quantity	8
Mic Pickup Distance	0~8m
Mic Function	Support echo cancellation, background noise suppression, gain compensation
Product Size	BL-6511C: 1484.6×919.9×87.2mm
Package Size	BL-6511C/UST: 1630×220×1050mm
Net Weight	BL-6511C: 43±1KG

Model Type	BL-7511C
Integrated Processor	Android 11 2.2GHz 4 core A73×4 +4 core A53×5
Memory	4GB DDR4 /32G (8G/128G Optional)
View Area	T75Omini-C/S:1650(H)×928(V)mm
Resolution	3840×2160(pixels)
Brightness	350-440cd/m²
Contrast Ratio	1200:1(optional 4000:1/5000:1/6000:1)
Response Time	6ms
Refreshing Frequency	65-98Inch:60 Hz 110Inch:120Hz
Viewing Angle	178°(H) / 178°(V)
Life Time	50,000 hrs
Color Gamut	72%
Display Colors	1.07G(10bit)
Audio Output Power	2×16W
Interface	HDMI IN x2, HDMI OUT x1, USB2.0 x1, USB3.0 x2, TOUCH USB x2, TYPE-C 1, COAX x1, RS232 IN x1, AUDIO IN x1, AUDIO OUT x1, VGA IN x1, DP IN x1, LAN x3
Front Interface	USB 3.0 x2, Type-C x1, Touch-USB x1, HDMI IN x1, Button x2
WiFi	2.4GHz
WI-FI Standard	802.11a/b/g/n/ac
Bluetooth	5.2 Version
Sensing Type	Infrared Touch Frame
Surface Protection	3.2mm Toughened Glass
Infrared Touch	Maximum support 40 Points
Min. Object Size	2mm
Touch Accuracy	±1mm
Touch System	Windows 10/8/7, Windows XP, Linux, Mac OSX, Chrome, Android
OPS(Optional)	i5/8G/256G(Optional:500G) i7/8G/256G(Optional:500G)
NFC Function	Support
VESA Hole Site	800mmx600mm
Camera	49 million pixels
Mic Quantity	8
Mic Pickup Distance	0~8m
Mic Function	Support echo cancellation, background noise suppression, gain compensation
Product Size	BL-7511C: 1706.8×1044×87.2mm
Package Size	BL-7511C/UST: 1860×220×1160m
Net Weight	BL-7511C: 52±1KG

Model Type	BL-8611C
Integrated Processor	Android 11 2.2GHz 4 core A73×4 +4 core A53×6
Memory	4GB DDR4 /32G (8G/128G Optional)
View Area	T86Omini-C/S:1895(H)×1066(V)mm
Resolution	3840×2160(pixels)
Brightness	350-440cd/m²
Contrast Ratio	1200:1(optional 4000:1/5000:1/6000:1)
Response Time	6ms
Refreshing Frequency	65-98Inch:60 Hz 110Inch:120Hz
Viewing Angle	178°(H) / 178°(V)
Life Time	50,000 hrs
Color Gamut	72%
Display Colors	1.07G(10bit)
Audio Output Power	2×16W
Interface	HDMI IN x2, HDMI OUT x1, USB2.0 x1, USB3.0 x2, TOUCH USB x2, TYPE-C 1, COAX x1, RS232 IN x1, AUDIO IN x1, AUDIO OUT x1, VGA IN x1, DP IN x1, LAN x4
Front Interface	USB 3.0 x2, Type-C x1, Touch-USB x1, HDMI IN x1, Button x3
WiFi	2.4GHz
WI-FI Standard	802.11a/b/g/n/ac
Bluetooth	5.2 Version
Sensing Type	Infrared Touch Frame
Surface Protection	3.2mm Toughened Glass
Infrared Touch	Maximum support 40 Points
Min. Object Size	2mm
Touch Accuracy	±1mm
Touch System	Windows 10/8/7, Windows XP, Linux, Mac OSX, Chrome, Android
OPS(Optional)	i5/8G/256G(Optional:500G) i7/8G/256G(Optional:500G)
NFC Function	Support
VESA Hole Site	800mmx600mm
Camera	50 million pixels
Mic Quantity	8
Mic Pickup Distance	0~8m
Mic Function	Support echo cancellation, background noise suppression, gain compensation
Product Size	BL-8611C: 1953×1184.4×87.2mm
Package Size	BL-86511C/UST: 2120×220×1325m
Net Weight	BL-8611C: 67±1KG

Model Type	BL-9811C
Integrated Processor	Android 11 2.2GHz 4 core A73×4 +4 core A53×7
Memory	4GB DDR4 /32G (8G/128G Optional)
View Area	T98Omini-C/S:2159(H)×1214(V)mm
Resolution	3840×2160(pixels)
Brightness	350-440cd/m²
Contrast Ratio	1200:1(optional 4000:1/5000:1/6000:1)
Response Time	6ms
Refreshing Frequency	65-98Inch:60 Hz 110Inch:120Hz
Viewing Angle	178°(H) / 178°(V)
Life Time	50,000 hrs
Color Gamut	72%
Display Colors	1.07G(10bit)
Audio Output Power	2×16W
Interface	HDMI IN x2, HDMI OUT x1, USB2.0 x1, USB3.0 x2, TOUCH USB x2, TYPE-C 1, COAX x1, RS232 IN x1, AUDIO IN x1, AUDIO OUT x1, VGA IN x1, DP IN x1, LAN x5
Front Interface	USB 3.0 x2, Type-C x1, Touch-USB x1, HDMI IN x1, Button x4
WiFi	2.4GHz
WI-FI Standard	802.11a/b/g/n/ac
Bluetooth	5.2 Version
Sensing Type	Infrared Touch Frame
Surface Protection	3.2mm Toughened Glass
Infrared Touch	Maximum support 40 Points
Min. Object Size	2mm
Touch Accuracy	±1mm
Touch System	Windows 10/8/7, Windows XP, Linux, Mac OSX, Chrome, Android
OPS(Optional)	i5/8G/256G(Optional:500G) i7/8G/256G(Optional:500G)
NFC Function	Support
VESA Hole Site	800mmx600mm
Camera	51 million pixels
Mic Quantity	8
Mic Pickup Distance	0~8m
Mic Function	Support echo cancellation, background noise suppression, gain compensation
Product Size	BL-9811C: 2216.80×1331.06×104.3mm
Package Size	BL-9811C/UST: 2525×325×1700mm
Net Weight	BL-9811C: 89.4±1KG
